01 / Context
Overview
A conventional three-phase induction machine was reverse-engineered and converted into a five-phase machine to create a dedicated multiphase-drive research platform. The work started with geometry extraction and a baseline electromagnetic model in Ansys Motor-CAD, then moved to winding synthesis and finally to physical stator rewinding.
The five-phase winding was designed from the available slot/pole combination using star-of-slots reasoning and fractional-slot constraints. Conductor allocation between neighboring slots was adjusted to improve slot-fill distribution while preserving the intended phase displacement and practical manufacturability.
My work
- Reconstructed the machine geometry and generated a baseline Motor-CAD model.
- Designed the five-phase fractional-slot winding and verified the winding layout.
- Optimized conductor sharing and slot fill before physical rewinding.

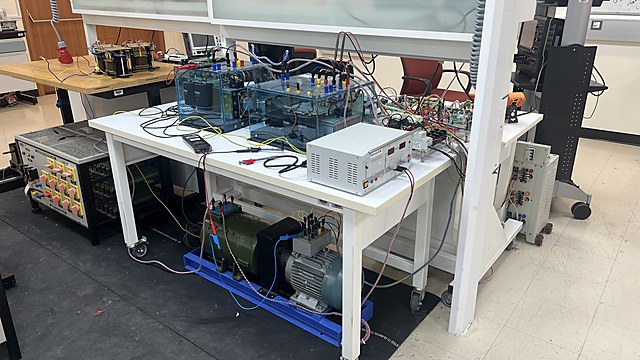

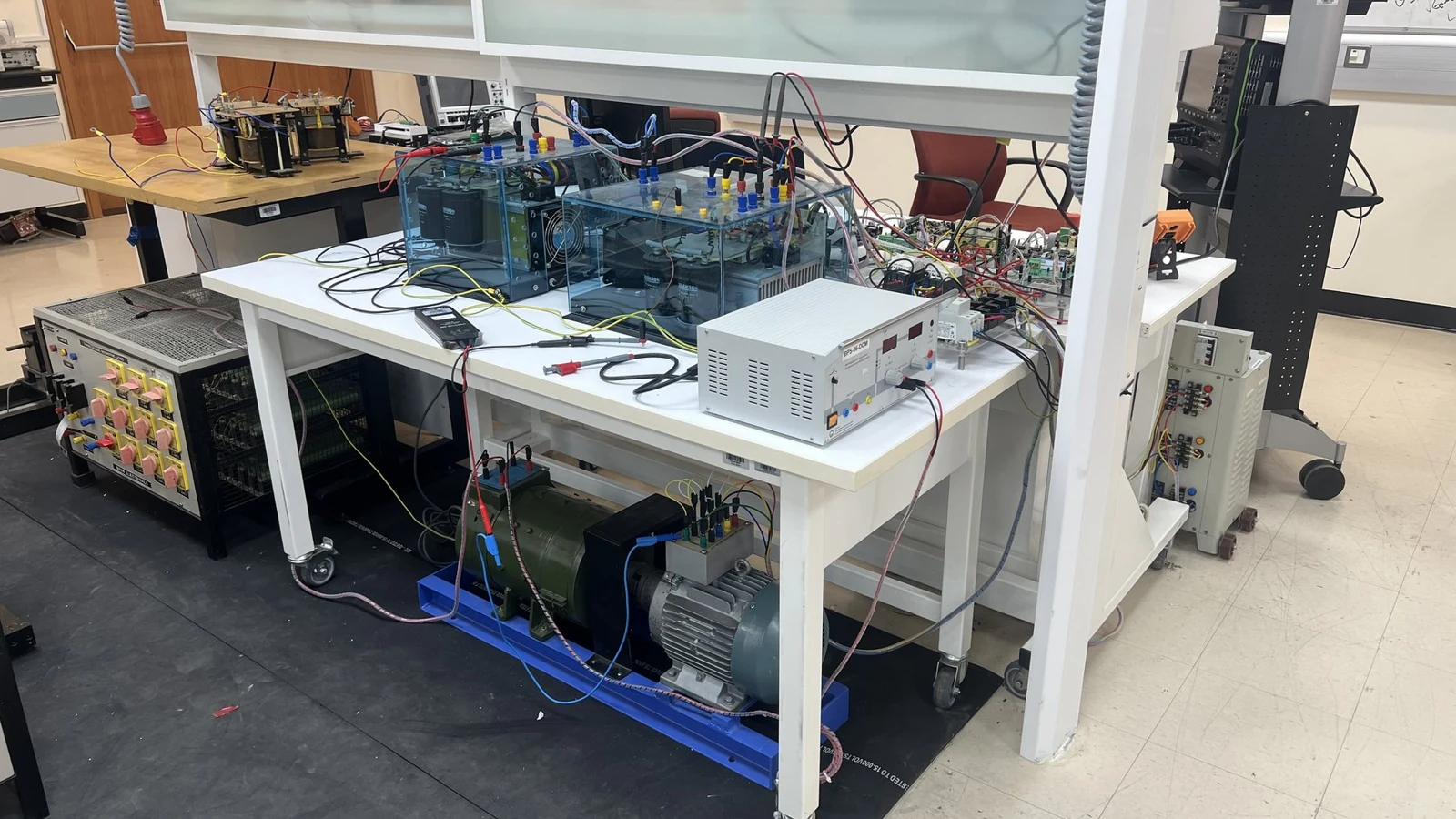

- Integrated the rewound machine into the experimental drive test bench.
02 / Approach
Methods & diagrams

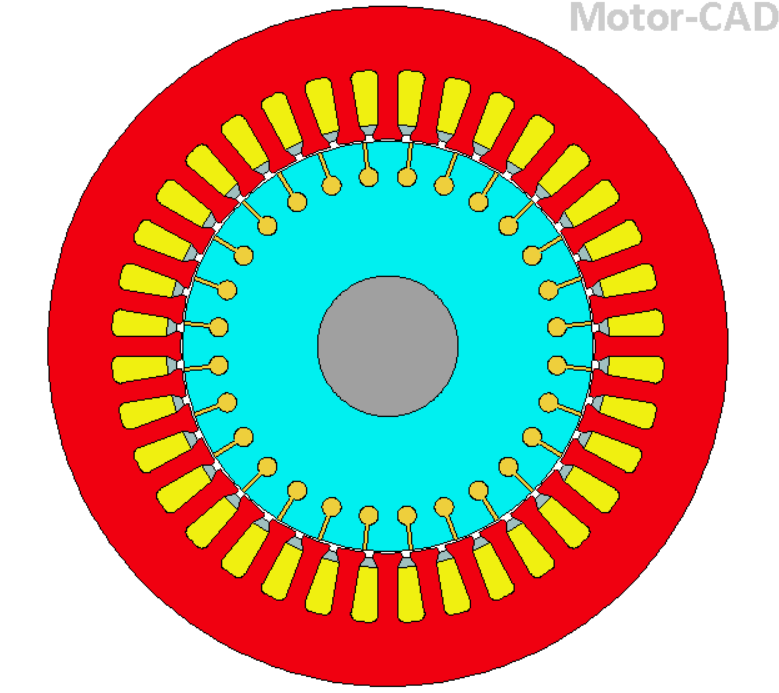

Machine Reconstruction
Mechanical and electromagnetic geometry was extracted from the original motor and reproduced in Motor-CAD.
Winding Synthesis
A five-phase winding layout was developed from slot/pole geometry using star-of-slots and phase-belt constraints.

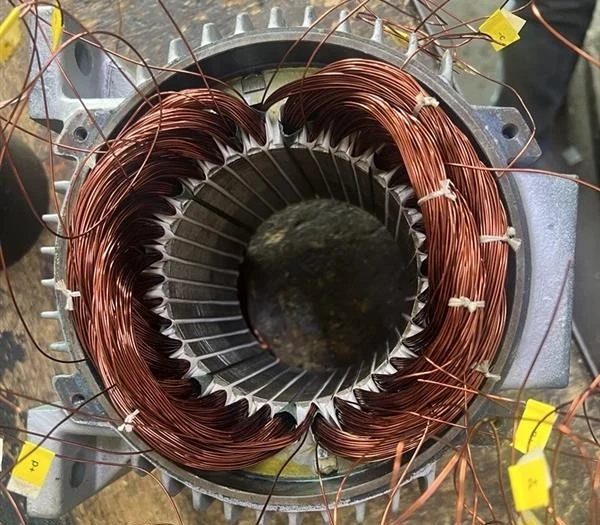

Experimental Rewinding
The stator was physically rewound and prepared for operation with the five-phase inverter and controller platform.
03 / Evidence
Results & gallery
Project figures and laboratory photographs. Open a figure to inspect the detail; vector PDFs are available for the control diagrams.
Findings
- The project portfolio documents the machine geometry, five-phase winding layout, and physical stator rewinding.
- The project connects winding design with the experimental multiphase-drive work.
Scope & limitations
The documented scope is winding reconfiguration and prototype development. A complete before/after efficiency and thermal comparison is not included.
